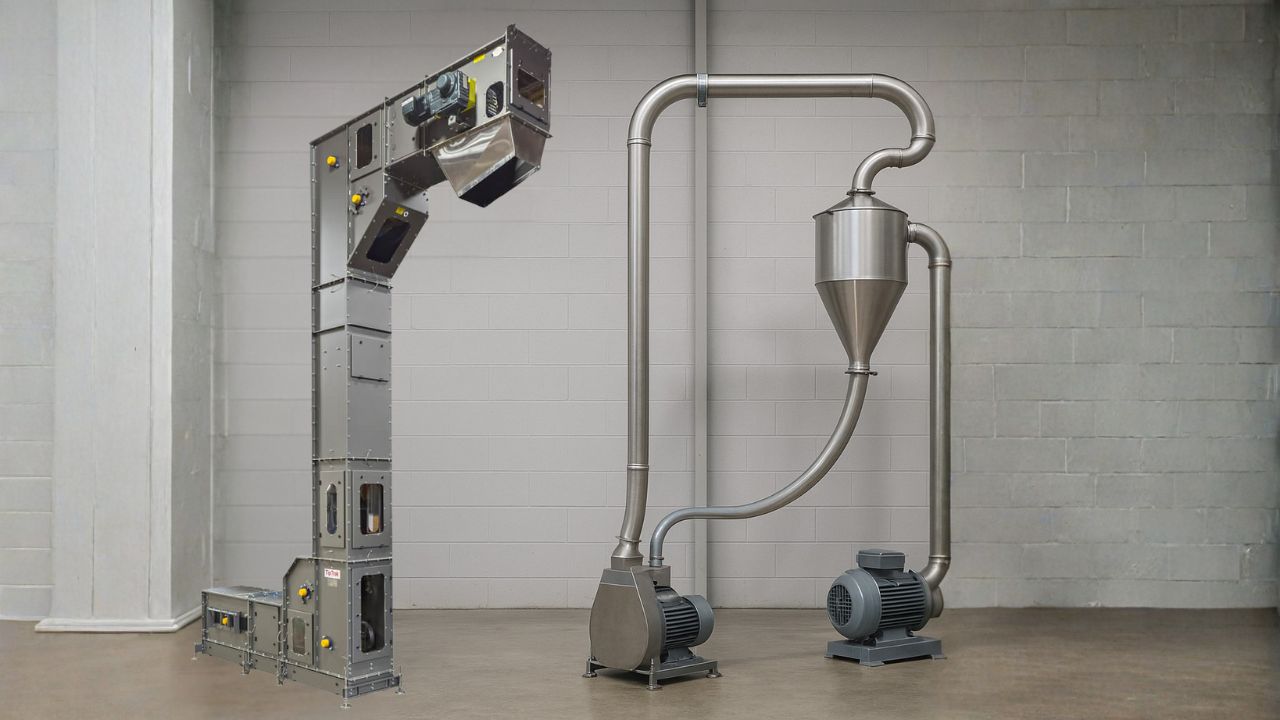

Comparing Bucket Conveyors and Pneumatic Conveyors For Dry Bulk Solids And Powders

When you are moving dry bulk solids and powders, choosing the right conveyor is not a small decision. It affects energy use, product quality, dust control, maintenance requirements and future expansion. Two of the most common options are bucket conveyors and pneumatic conveyors.

Both technologies are proven and widely used, but they excel in different situations. This article compares them side by side, with a special focus on dry bulk solids and powders, to help you decide when a bucket conveyor such as UniTrak’s TipTrak is the better fit, and when a pneumatic system makes more sense.

‍

Overview of Each Technology

‍

Bucket Conveyors

Bucket conveyors (or bucket elevators) use a series of buckets attached to a belt or chain to move material, usually in a vertical or steep incline path. Continuous bucket conveyors, such as TipTrak, present a moving column of buckets that overlap so the product is transferred gently from bucket to bucket with minimal spillage or product drop.

Typical characteristics:

• Ideal for vertical or steep incline conveying
• Compact footprint in plan view
• Gentle handling at relatively low speeds
• Can be designed as enclosed or semi enclosed to control dust and contamination

‍

Pneumatic Conveyors

Pneumatic conveying systems use air (or another gas) to move bulk solids through a pipeline. Material is fed into the conveying line and carried in suspension or in a dense phase to a receiver, where air and material are separated.

Typical characteristics:

• Enclosed pipeline systems that can run horizontally and vertically
• Highly flexible routing around existing equipment and structures
• Commonly used for powders, pellets and other fluidizable materials
• Usually driven by blowers or compressors, along with feeders, filters and controls

‍

1. Material Characteristics And Product Integrity

What They Handle Best

‍

Bucket conveyors

Bucket conveyors are well suited for:

• Granules, pellets and coarse powders
• Fragile, friable or abrasion sensitive products that must arrive intact
• Heavy, dense, or mildly sticky materials that can be difficult to fluidize in air
• Blends and agglomerated products where segregation must be minimized

Because the material sits in buckets and moves at relatively low speed, impact and inter particle collisions are reduced. Continuous bucket designs help maintain blends and minimize breakage.

‍

Pneumatic conveyors

Pneumatic systems are especially effective for:

• Fine powders and dusty materials that fluidize easily
• Small granules and pellets that are readily carried in an air stream
• Applications that require long horizontal runs or many directional changes
• Hazardous or toxic powders that must remain fully enclosed 

However, pneumatic systems are less suitable for very heavy, abrasive solids and very sticky materials, which can cause high wear or plugging in pipelines. 

Product Degradation

For many dry bulk solids and powders, especially friable granules or formed pellets, product degradation is a key concern.

In a bucket conveyor, material typically experiences only one or two gentle transfers from inlet to discharge. This greatly reduces attrition, dust generation and damage to granules. Continuous bucket conveyors such as TipTrak are specifically selected when product integrity and minimal breakage are critical. 

In a pneumatic system, particles experience repeated impact with elbows, fittings and other particles at relatively high velocity. For fragile products this can increase fines generation, cause shape changes and promote segregation in blends. White papers on pneumatic vs mechanical conveying frequently note higher product degradation in dilute phase pneumatic lines compared with gentle mechanical systems such as bucket elevators. 

If your material is fragile, expensive or tightly specified, a bucket conveyor often provides better control over product quality from inlet to discharge.

‍

2. Cleanliness, Containment And Dust Control

Cleanliness and dust control have become more important in almost every industry, from foods and pharmaceuticals to chemicals and minerals.

Pneumatic conveyors are:

• Fully enclosed by design, which helps contain dust and product
• Well suited for toxic, allergenic or combustible powders, since the system can be sealed and, where required, operated with inert gas to reduce explosion risk 
• Often easier to connect directly to dust collection and filtration systems

Bucket conveyors can also be designed for very clean operation:

• Continuous bucket conveyors with fully enclosed casings and properly sealed infeed and discharge areas minimize dust escape and contamination
• Because material is not blown through pipelines, there is less dust carryover in air and less need for very large filtration systems
• Pneumatic systems frequently require larger dust collection systems than bucket conveyors, which raises energy consumption and capital cost. 

In environments where absolute containment of highly hazardous powders is mandatory, pneumatic conveying often has an advantage. In many other applications, an enclosed bucket conveyor provides excellent dust control with lower energy and a simpler system.

‍

3. Energy Consumption And Operating Cost

Energy and operating cost are critical when conveying large volumes of bulk solids.

Multiple industry sources agree that, on a per ton basis, mechanical conveyors typically consume less energy than pneumatic systems, especially at higher throughput and shorter to moderate conveying distances. Mechanical conveying usually requires only a drive motor, while pneumatic conveying must power both blower or compressor and any auxiliary air handling equipment. 

For bucket conveyors, especially continuous bucket elevators:

• The motor only lifts the material and the moving parts in a compact vertical path
• There is no large air volume to accelerate and decelerate
• Dust collection requirements are often smaller than for pneumatic systems, further reducing power consumption 

Pneumatic conveying, in contrast:

• Requires significant power to generate and maintain air flow and pressure or vacuum
• Frequently needs high power dust collectors, filters and air treatment systems

• May involve higher specific energy consumption, although modern compressors and well engineered systems can narrow the gap 

Over the life of a system, these energy differences can be substantial, especially for 24/7 operations handling large tonnages.

‍

4. Layout, Routing And Footprint

Pneumatic conveyors shine when plant layout is complex.

• Pipelines can snake around existing equipment, up, down, and through tight spaces

• Conveying lines can be attached to building steel, freeing floor space

• Multiple pick up and discharge points can be served by a single system in some designs 

This flexibility is a major reason pneumatic systems are common in crowded food, chemical and plastics plants.

Bucket conveyors, especially continuous bucket elevators, provide a different footprint advantage:

• Very compact base footprint for large vertical lifts

• Simple vertical path, ideal for lifting material from a low level to silos or upper floor process equipment

• Predictable, clearly defined infeed and discharge points that integrate well with upstream and downstream equipment

In greenfield designs where equipment can be arranged around a vertical elevator, or where there is a dedicated tower or limited floor space, a bucket conveyor can deliver large capacity and gentle handling in a very small footprint.

‍

5. Maintenance, Reliability And System Complexity

Both mechanical and pneumatic systems can be reliable when properly designed and maintained, but the nature of the maintenance work is different.

Bucket conveyors

• Require regular inspection of buckets, belt or chain, sprockets and bearings

• Operate at relatively low speeds, which reduces wear and extends component life

• Have straightforward mechanical components that plant maintenance teams are familiar with

• In continuous designs such as TipTrak, there is a single moving beltchain and sealed buckets, which can reduce points of failure and unplanned downtime compared with multi transfer mechanical layouts 

Pneumatic conveyors

• Have fewer exposed moving parts in the conveying line itself, and many sources note lower mechanical maintenance on the line compared with some mechanical systems

• Still require maintenance of blowers or compressors, rotary valves, filters, receivers, instrumentation and control systems

• Need careful attention to elbow wear, plugging risk, and filter performance, especially with abrasive or cohesive powders

While there are fewer rotating parts in the conveying pipeline, pneumatic systems are more complex overall, with more instrumentation and air management components that must be monitored and maintained.

‍

6. Capital Cost And System Complexity

Pneumatic systems can be very attractive when one system can replace several mechanical conveyors and multiple transfer points. However, they generally require:

• Blowers or compressors

• Feeders and airlocks

• Piping, elbows and supports

• Filters, receivers and dust collection

• Advanced controls and instrumentation 

Mechanical systems such as bucket conveyors typically involve:

• The conveyor itself

• Drive, take up and supporting structure

• Loading and discharge chutes

Industry comparisons often note that pneumatic conveying can carry a higher initial capital cost and higher complexity, while mechanical systems such as bucket conveyors are simpler to understand, install and operate in many standard applications.

7. When Bucket Conveyors Are The Better Choice

In many dry bulk solid applications, a bucket conveyor is the preferred solution, particularly when you need:

• Gentle handling for fragile or friable products that must retain their shape and size

• Controlled vertical lift with a compact footprint

• Minimal product degradation and segregation, especially for blends and agglomerated materials

• Energy efficient conveying for moderate conveying distances and high tonnages

• Handling of heavy, dense, or mildly sticky solids that do not fluidize well in air

• Simple, robust mechanical design that plant maintenance personnel can service

Continuous bucket systems such as UniTrak’s TipTrak are often selected for food ingredients, specialty chemicals, pet foods, seeds, minerals and similar products where gentle, reliable, vertical handling is essential. 

‍

8. When Pneumatic Conveyors Are The Better Choice

Pneumatic systems often win out when:

• Fine powders and dusty materials must be moved long distances, often across the plant

• Complex routing is required, including multiple direction changes and routing over or around existing equipment

• Multiple pick up or discharge points are needed for flexible operation

• High levels of containment are required for toxic, allergenic or combustible dusts

• Sanitary, closed transfer is essential for hygiene or regulatory reasons, such as in pharma or food applications 

In these cases, the routing flexibility and closed nature of pneumatic conveying can outweigh its higher energy use and complexity.

‍

Putting It All Together

There is no single "right" answer for every dry bulk conveying application. Pneumatic conveyors and bucket conveyors each offer distinct strengths.

If you need long distance, complex routing, multiple pick up and discharge points, or full containment for fine powders, pneumatic conveying is usually the better fit.

If you need gentle, energy efficient vertical conveying of solids and powders, with minimal product damage and a compact footprint, bucket conveyors - especially continuous designs like UniTrak’s TipTrak - often provide the best combination of performance, reliability and cost. 

The most effective approach is to start with your material characteristics, process goals and layout constraints, then evaluate both technologies against those needs.
